Plus current series

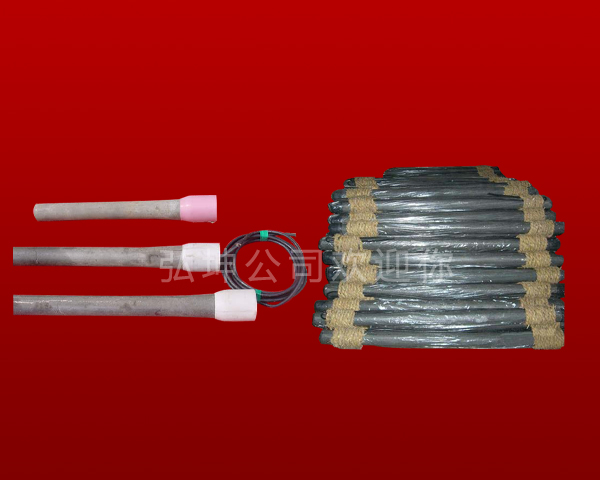

High silicon cast iron anodes

Product description

　　Execution standard: SYJ36—89 SY/T0036-2000

　　Main application: High silicon cast iron anodes are widely used in maritime oil drilling platform, underground pipelines, underground cable and other facilities of the impressed current cathodic protection.

　　Chemical composition

Of the goods	Of the goods					Impurity content
Of the goods	Si	Cr	Mn	C	Fe	P	S
High silicon cast iron	14-16	-	0.6-0.8	0.8-1.05	allowance	≤0.25	≤0.1
Chromium ferrosilicon	14-16	4.0-4.5	0.6-0.8	0.8-1.05	allowance	≤0.25	≤0.1

　　size

model	specification（mm）	Weight (kg)	anode with cable
model	specification（mm）	Weight (kg)	mm Cross section	mm
YGT-I	Ф50×1500	22	25	1000
YGT-II	Ф75×1200	40	25	1000
YGT-III	Ф75×1500	50	25	1000
YGT-IV	Ф100×1500	90	25	1000

　　Overall dimensions and specifications according to user requirements and production
